APW Wyott HL-5 Drop-In Shielded Heated Up to 5" Lowerator Dispenser

APW Wyott |  Model: HL-5

APW Wyott Drop-In Shielded Heated Up to 5" Lowerator Dispenser - HL-5

Not currently offered!

Out Of Stock

UL Listed NSF Listed CSA Certified

APW Wyott HL-5 Specifications

Low Price Guarantee On All APW Wyott Products!

This item may have a lead time of up to 1-3 weeks to ship after an order is placed.

Item:APW Drop-In Shielded Heated Up to 5" Lowerator Plate Dispenser

Model Number: HL-5

Description: This unit is perfect for corporate dining kitchens, restaurants, and sports bars.

  • Lowerator Series

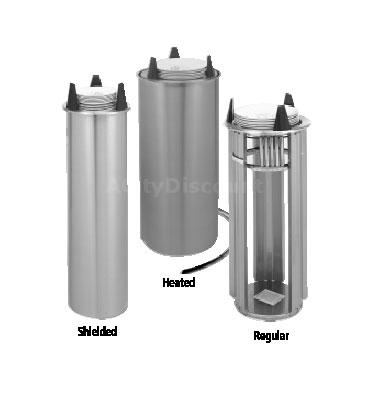

  • Tube construction is stainless steel with polished flange and dispensing head. Easy drop-in insulation. The dispensing mechanism in APW Wyott’s Lowerators® uses springs attached to a sliding support bar that rides both inside and outside the tube. This design feature prevents a stack of dishware from sticking in the down position, and releasing unexpectedly. Flange supports unit on countertop after simple cutout is made. Shielded unheated tubes are available. Heated tubes are provided with 5 ft length of flexible metal conduit with standard 1/2 “ fitting and 6” wire leads for easy connection to junction box for 120V service.
  • Holds 6 dozen dishes, 3 dozen bowls, or 4.5 dozen cups or glasses
  • Temperature range of plates after one hour in heated tube (depending on temperature of plates when placed in tube): Minimum setting: 80 - 100 F. Maximum setting: 110 - 160 F.
  • Electrical: 120V, 1.8A
  • Overall dimensions: 8 1/4" wide x 8 1/4" deep x 31 1/4" high
  • Crated weight of 18 lbs
  • UL, NSF, and CSA certified


  • 1 Year warranty

Manufacturer Information


Power Information

120V volts

Shipping Dimensions

18 lbs.
8.25 in.
8.25 in.
31.25 in.

Shipping Information

Your order will be shipped from
Allen, TX 75013

Customer Pick Up

(Not Available for pickup)

NSF Listed
NSF Approved
This product meets National Sanitation Foundation (NSF) standards for public safety & environmental factors with regards to design, manufacture, operation, and labeling.
UL Listed
UL Listed
This product is UL listed by the UL certification agency which means it meets safety and structural integrity standards for use in food service operations.
CSA Certified
CSA Approved
This product has been certified by the Canadian Standards Association (CSA) for its use type. Products with more than one power type, such as electric and gas features, will have multiple CSA certifications.
