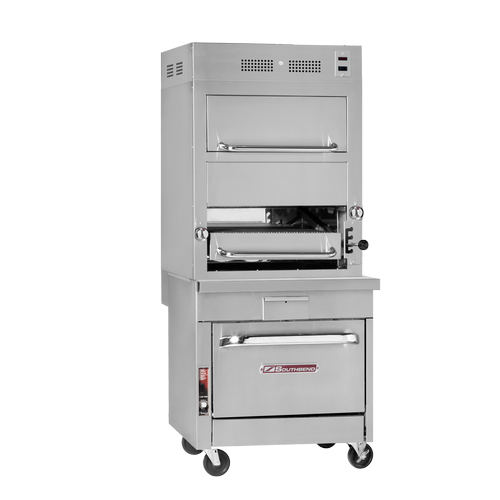

Southbend P32A-171 32" Gas Infrared Upright Broiler with Convection Oven Base

With Warming Oven. Southbend Platinum Series
5% Off Select Southbend Items
Coupon Code: SOUTHBEND5

Southbend P32A-171

Southbend P32A-171 32 Gas Infrared Upright Broiler with Convection Oven Base
Retail Price: $12,185.25
Login or Add to Cart
to See Your Price

Or Call For Price  404-752-6715
Free Southbend Casters:
Gas Options:
Original Retail Price $22,155.00
Availability: In Stock
Condition: New
On Southbend
Does not include LiftGate Fee if needed. Only for Customers within the 48 Contiguous States
Shipped from
Fuquay Varina, NC 27526
Product Specifications

Mfg.: Southbend
Model: Southbend P32A-171

This item is brand new and ships directly from the supplier. Please note the image above is for reference only. This item may have up to a 7-10 day lead time before shipping after an order is placed, please contact our sales team if you have a question about this.

Item: Southbend 32" Gas Infrared Upright Broiler w/ Convection Oven & Warming Oven


Description: This sectional infrared broiler unit is great for steak houses, seafood restaurants, bistros, and buffet style cafeterias.


  • Platinum Series
  • Sectional match
  • Single deck
  • 104,000 BTUs in Natural or LP infra-red burners
  • 430 Stainless steel front, back, and sides
  • 90 Second preheat
  • Grid height adjustment mechanism with four positions
  • Insulated lining and burner boxes
  • Broiler grid is 24 1/2" wide x 28" deep and easily rolls out to 17 1/4"
  • Oven is 45,000 BTU in Natural or 42,000 BTU in LP with electronic pilot ignition
  • Porcelain enamel oven interior with three oven racks with 5-position side rails
  • Convection oven dimensions: 26" wide x 24" deep x 14" high
  • Convection oven has two speed blower, 1/3 HP
  • Oven thermostat range: 150°F to 500°F
  • Cool to touch handle
  • 6" Adjustable legs
  • NEMA 4 water resistant controls
  • Warming oven is heated by broiler flue gases (25" wide x 25" deep)
  • 1 1/4" Font manifold and rear gas connection
  • Gas type: Natural or LP
  • Electrical: 120v/60hz/1-ph
  • NSF, CSA approved
  • Crated weight: 995 lbs.

  • 2 Years on specified operational parts
  • 2 Years on labor

Please note that all sectional units require a regulated gas supply; pressure regulator must be ordered separately

Manufacturer Information
List price:$22,155.00
Power Information
Powered by:120 volts
Gas Information
Uses Gas?:Yes
Weight:995 lbs.
Width:32 in.
Depth:40.75 in.
Height:81 in.
Shipping Information
Shipped from
Fuquay Varina, NC 27526
Packing Charge:$0.00
Customer Pick Up
Not Available (Shipping Only)
Available Options
At NO EXTRA CHARGE, this item is available in the following options:
Free Southbend Casters.-

Availability: During checkout you will be able to order in either:

FREE Casters (In Stock)
Standard Legs (In Stock)
Gas Options.-

Availability: During checkout you will be able to order in either:

Natural Gas (In Stock)
Liquid Propane (In Stock)
