Star 836MA Ultra-Max Countertop 36in Manual Control Gas Griddle

Star | Model: 836MA

Star Ultra-Max Countertop 36in Manual Control Gas Griddle - 836MA

Web Price: $2,706.00

Call 404-752-6715

Availability: In Stock

Condition: New

Item #: 131918

Spec Sheet

Be the first to write a review

FREE Shipping

on Select Star / Holman / Toastmaster Products

Does not include LiftGate Fee if needed. Only for Customers within the 48 Contiguous States

(Not Available for pickup)

Ask a Question Apply for Financing

Specifications Add-ons & Parts Similar Models Related Items

Star 836MA Specifications

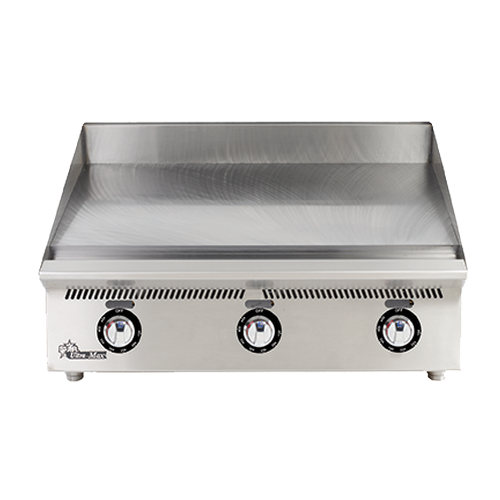

Please Note: Picture is for reference.

Ultra-Max manual griddles are the perfect match for the budget minded operators. For breakfast, lunch or dinner, the Ultra-Max manual control griddles out perform the competition. Ultra-Max griddles feature 1in thick highly polished stainless steel griddle plate with 5in tapered stainless steel splash guard and 3-1/2in wide front access grease trough with 6 quart grease drawer capacity. Includes a 30,000 BTU aluminized steel burner every 12in of width controlled by manual control valve with standing pilot light, 3/4in N.P.T. male gas connection with convertible pressure regulator, and 4in adjustable legs. These units are approved for installation within 6in of combustible surfaces.

ULTRA-MAX MANUAL GAS GRIDDLE Model 836M

Features & Benefits:

Manual control valve for the budget minded operator and for the experienced chef that prefers the feel of a manual control.

Available in 24, 36, 48, 60 and 72 inch widths to meet your space and volume requirements.

Ultra-Max high capacity 24” deep cooking surface is ideal for high volume operations.

Highly polished 1” thick steel plate for superior heat distribution, fast recovery and energy efficient operation.

Custom designed 30,000 BTU steel burner every 12” of cooking surface provides superior cooking performance.

Heavy-duty all-weld body construction with stainless steel front, side panels, bull nose and splash guard.

Cool to the touch stainless steel bull nose provides a safe and comfortable work zone.

“Euro-style” design with stylishly curved, ergonomically advanced front panel providing easy access and viewing of controls.

Standing pilot light for consistent performance.

Spatula wide 3-1/2” front grease trough and grease chute for easier cleaning.

Large 6 quart stainless steel grease drawer.

Extra-heavy 4” adjustable legs to fit your countertop needs.

Floor model stands available for free standing units. Optional casters available.

Ultra-Max's three year parts and labor warranty.

Manufacturer Information

Manufacturer: Star

Model: 836MA

Model: 836M

Gas Information

Uses Gas?: Yes

BTU's: 90,000

Dimensions

Weight: 399 lbs.

Width: 36 in.

Depth: 32.5 in.

Height: 18 in.

Shipping Information

Your order will be shipped from
Cookeville, TN 38501

Customer Pick Up

(Not Available for pickup)

UL Listed: This product is UL listed by the UL certification agency which means it meets safety and structural integrity standards for use in food service operations.

UL Classified Listed: This product is further certified by the UL certification agency for safety and structural integrity as well as enviromental and public health standards and complies with ANSI/NSF regulations.

CSA Certified: This product has been certified by the Canadian Standards Association (CSA) for its use type. Products with more than one power type, such as electric and gas features, will have multiple CSA certifications.

Made in the USA: This product was manufactured in the United States of America.
