100 Quart Variable Speed Planetary Dough Mixer
Varimixer | Model: V100PL
Varimixer V100PL Specifications

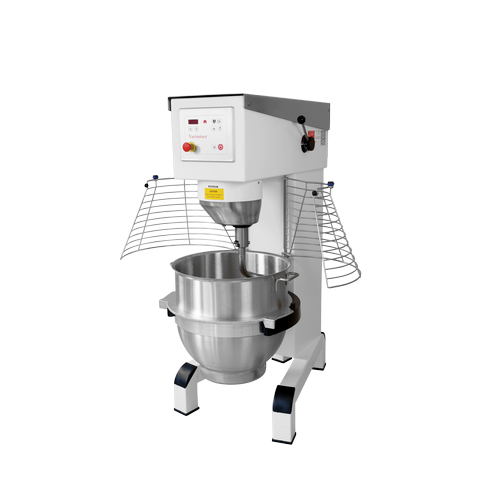

The Varimixer Model w100PL is a planetary mixer with a variable speed drive system. The mixer frame consist of a column with welded-on feet, and a top traverse closed by a stainless steel cover. The bowl is mounted in bowl arms which are manually raised and locked simultaneously -or lowered and opened, respectively. The column contains the motor and the bowl arm mechanism. The top traverse contains the transmission system consisting of the moveable pulleys, the intermediate belt drive and the planetary head. Start and stop push buttons are mounted on the front plate along with a 15-minute electrical timer with a HOLD feature. Mixing tools are mounted in a bayonet shaft in the planetary head. Precision milled beveled gear on the main shaft engages the bayonet shaft and the fixed internal gear ring through a double set of milled gears obtaining extra high torque capabilities of the mixing tools. Precision milled cast iron bowl arms lower and raise the bowl and clamp it in precise position relative to the mixing tool allowing for small tolerance between tool extremities and the bowl.
