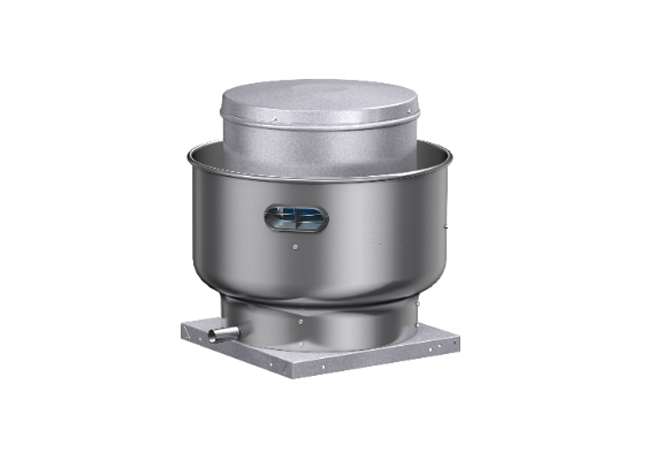

Accurex XRUB-180-10 1 HP Belt Driven 4000 CFM Exhaust Fan

Features:

• Fan shaft is one inch minimum in diameter, precisely sized, ground and polished, so the first critical speed is at least 25% over the maximum operating speed, which results in longer fan life
• Lubricatable cast pillow block and air handling quality extend life—minimum L(10) life in excess of 100,000 hours [L(50) average life of 500,000 hours]
• True vibration isolators contain two independent studs with rubber neoprene to support the drive assembly and wheel for long life and quiet operation—no steel-on-steel contact
• Clean-out port allows the outside of the wheel to be cleaned through a 4-inch diameter removable plug in the windband, and a hinged base allows entire fan to tilt away for access to wheel and ductwork for inspection and cleaning
• Heavyweight steel wheel with a non-stick coating eliminates imbalance in heavy grease applications; the steel wheel is a backward-inclined, non-overloading centrifugal type
• Drain trough allows all grease and water to be collected at one point for easy disposal
• One-piece windband is continuously welded to the curb cap and drain trough for grease leak-proof protection
• Drive assembly, including belts, pulleys and keys, are oversized to 150% of driven horsepower. Machined cast steel pulleys are adjustable for final system balancing; belts are static-free and oil-resistant
• Unit is constructed of a minimum of 16-gauge steel; entire unit is powder coated with chemical-resistant Permatector™ finish
• Uniquely spun from steel to achieve superior strength and consistent material thickness
• Motor and NEMA-3R disconnect switch are prewired to specified voltage
• Cooling fins draw outside air directly into the motor compartment; this positive motor cooling with fresh air results in maximum motor life
• 1 HP
• 4,000 CFM
