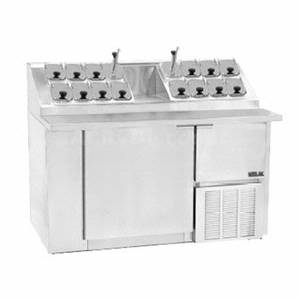

Nor-Lake ZF122SMS/0-2 54" Ice Cream Topping Cabinet, w/ 16 Openings
Nor-Lake Model: ZF122SMS/0-2 SKU: 76721
Out Of Stock
Item discontinued!
Nor-Lake ZF122SMS/0-2 Specifications
Low Price Guarantee On All Nor-Lake Products!
This brand new item is shipped directly by Manufacturer or Supplier.
Item: 54" Ice Cream Topping Cabinet w/ 16 Openings for Syrups or Fruit Jars
Item Number: ZF122SMS/0-2
PLEASE NOTE THAT THE PICTURE IS FOR REFERENCE ONLY
Description:
Ice Cream Topping Unit, freezer base, 54"W, 16 opening dual syrup rail (jars & pumps NOT included), shelves behind left door, stainless steel top, front & sides, alum. interior, casters, 1/2 hp, 115v/60/1, UL, C-Ul, UL Sanitation listed
Exterior Finish:
Exterior front, sides, door and top are stainless steel. Syrup rail is stainless steel. The exterior back and bottom are galvanized steel. All exterior joints fold in without lap joints. No exposed raw edges.
Interior Finish:
Interior liner and interior pan wells are smooth aluminum. All corners, vertical and horizontal, are coved with ¼" radius.
Syrup Rail:
Dual syrup rail includes openings for 16 syrup or fruit jars. (Syrup jars with 4 hinged lids, 4 ladle lids and 2 pumps are optional) Syrup rail is stainless steel. Rail is designed for holding non-hazardous types of foods.
Insulation:
Cabinet is foamed in place with polyurethane insulation.
Hardware:
Refrigerator comes complete with one floor rack. Freezer includes three adjustable wire racks within the storage compartment.
Refrigeration:
Refrigerator system utilizes R-134A refrigerant. Freezer system utilizes R-404A refrigerant. Complete with automatic, electric condensate evaporator. Self contained refrigeration system.
Electrical:
115 volt, 60HZ, 1 Phase
Approval:
UL listed
C-UL listed**
UL Sanitation listed.**
Standard Features:
Air-cooled condensing unit
Forced air evaporator
In refrigerator: two 1¼" nylon sleeves are provided for pumping soft ice cream mix into ice cream freezers.
Opening for "Hot Fudge" pump station
2-tier removable shelf for pump stations
Operating temperature of base: 38° F Cooler/ -10° F Freezer
Polyurethane insulation
Power cord and plug furnished
Rigid base
Stainless steel exterior, top and syrup rails
UL, C-UL, & UL sanitation listed
Warranties: 90 day labor, plus 1 year parts
Dimensions:
54"W x 34-7/8"D x 41¾"H
Item: 54" Ice Cream Topping Cabinet w/ 16 Openings for Syrups or Fruit Jars
Item Number: ZF122SMS/0-2
PLEASE NOTE THAT THE PICTURE IS FOR REFERENCE ONLY
Description:
Ice Cream Topping Unit, freezer base, 54"W, 16 opening dual syrup rail (jars & pumps NOT included), shelves behind left door, stainless steel top, front & sides, alum. interior, casters, 1/2 hp, 115v/60/1, UL, C-Ul, UL Sanitation listed
Exterior Finish:
Interior Finish:
Syrup Rail:
Insulation:
Hardware:
Refrigeration:
Electrical:
Approval:
Standard Features:
Dimensions:
54"W x 34-7/8"D x 41¾"H
Manufacturer Information | |
| Brand | Nor-Lake |
|---|---|
| Model | ZF122SMS/0-2 |
Power Information | |
| Power | 115 volts |
| Phases | 1 |
| Watts | 60 |
Item Dimensions | |
| Weight | 420.00 lbs. |
| Width | 60.00 in. |
| Depth | 41.00 in. |
| Height | 49.00 in. |
UL Listed
This product is UL listed by the UL certification agency which means it meets safety and structural integrity standards for use in food service operations.
