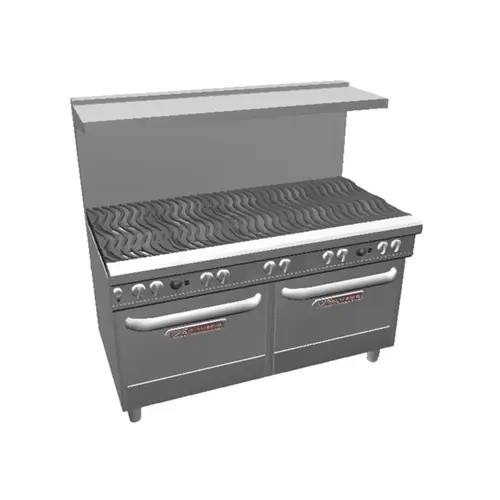

Southbend 4602AA Ultimate 60" 10 Burner Range w/ Wavy Grates & 2 Con. Ovens

Southbend |  Model: 4602AA

Southbend Ultimate 60 10 Burner Range w/ Wavy Grates & 2 Con. Ovens - 4602AA

2 Year Parts And Labor Warranty On All Ultimate Ranges
Web Price: $11,152.35
Call  404-752-6715
In Stock

FREE Shipping

On Southbend

Does not include LiftGate Fee if needed. Only for Customers within the 48 Contiguous States

(Not Available for pickup)

Southbend 4602AA Specifications

Low Price Guarantee On All Southbend Products!

There may be a lead time associated with this item, please call us directly with any questions on availability.

Item: Southbend 60" Ultimate 10 Burner Restaurant Range w/ Wavy Grates & 2 Convection Ovens

Model: 4602AA

  • Commercial gas range 60-3/4” wide with a 37” high cooking top
  • 4” Stainless steel front rail, stainless steel front and sides
  • Front located manual gas shut-off to entire range
  • One year No Quibble, 24/7 parts and labor warranty
  • Factory installed Regulator
  • Standing pilot for open top burners
  • Battery spark ignition for oven bases
  • Ten (10) patented, one piece, lifetime clog free, cast iron burners (27,000 BTU NAT ea.)
  • Cast bowl designed wavy grates for better efficiency
  • Allows full use of entire range top
  • Spring assisted, counterweight doors.
  • Double sided, full porcelain enamel oven cavity for superior cleanability and corrosion protection. Coved corners for easy cleaning and enhanced airflow eliminating hot / cold spots.
  • 6” stainless steel adjustable legs standard
  • 32,000 BTU NAT (ea.) convection ovens with standing pilot and thermostat range of 175°F to 550°F (79°C to 288°C). Porcelain enamel interior measuring 14” high x 26” wide x 24” deep. Three racks with five position side rails. 1/2 hp, 1710 rpm, 60 cycle, 115V AC, high efficiency, permanent split phase motor with permanent lubricated ball bearings, overload protection and Class “B” insulation. On/Off switch to allow CO base to operate as a standard oven.
  • 22.5” flue riser standard with heavy duty shelf. Optional 10” and 5” flue riser available without shelf (please call for availability).

  • Two (2) year limited parts and labor warranty.

Manufacturer Information


Power Information

115 volts

Gas Information



1075 lbs.
60.75 in.
41.75 in.
59.5 in.

Shipping Information

Your order will be shipped from
Fuquay Varina, NC 27526

Customer Pick Up

(Not Available for pickup)

NSF Listed
NSF Approved
This product meets National Sanitation Foundation (NSF) standards for public safety & environmental factors with regards to design, manufacture, operation, and labeling.
CSA Certified
CSA Approved
This product has been certified by the Canadian Standards Association (CSA) for its use type. Products with more than one power type, such as electric and gas features, will have multiple CSA certifications.
Made in the USA
Made in the USA
This product was manufactured in the United States of America.

Included Options

This item is available in multiple configurations. Get the most from your investment by taking the time to select the right configuration for your needs.

Free Southbend Casters
FREE Casters (In Stock)
Standard Legs (In Stock)
Gas Options
- Please Select Gas Type - (In Stock)
Natural Gas (In Stock)
Liquid Propane (In Stock)
Southbend Range Riser Option
22.5" Riser w/ Shelf (Standard) (In Stock)
10" Flue Riser (In Stock)
5" Flue Riser (In Stock)
