175lb Undercounter Dice Cube Ice Machine w/ Cube Options

Manitowoc |  Model: Q170

Manitowoc 175lb Undercounter Dice Cube Ice Machine w/ Cube Options - Q170

Comes with FREE Water Filter Kit!

Item discontinued!

Out Of Stock

Manitowoc Q170 Specifications

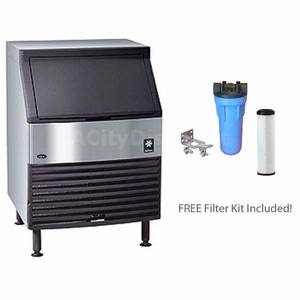

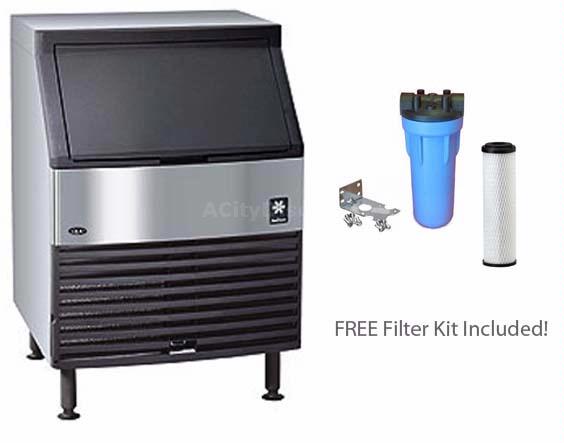

Item: Manitowoc 175lb Undercounter Dice Cuber Ice Machine Stainless w/ Cube Options

Model: QD-0172A or QY-0174A

Description:This unit is ideal for delivering a high volume ice production for pizzerias, convenience stores, and sports bars.


  • Stainless steel exterior construction
  • Flat right angled plug for easy installation
  • Angled bin door for easy access
  • EZ slide door for improved user experience
  • Produces up to 175lbs of ice per 24 hours
  • Ice cube shape: Full dice cube or half dice cube (Options at checkout)
  • Full dice cube dimensions: 7/8" wide x 7/8" deep x 7/8" high
  • Half dice cube dimensions: 3/8" wide x 1 1/8" deep x 7/8" high
  • 80 lb Ice storage capacity
  • 6" Legs
  • Air cooled
  • Self contained condenser
  • Cannot use with AuCS system
  • R-404A refrigerant
  • Electrical: 115v/60hz/1-ph, NEMA 5-15P
  • Dimensions: 26" wide x 26.5" deep x 38.5" high
  • Shipping weight: 155 lbs.
  • NSF, UL, ENERGY STAR ® approved

  • 5 Year parts and 5 year labor coverage on ice machine evaporator
  • 5 Year parts and 3 year labor coverage on ice machine compressor
  • 3 Year parts parts and labor coverage on all other ice machine, dispenser, and storage bin components

This Ice Machine comes with a free inline filter kit!

Inline Water Filter Kit Includes:

  • Water Filter Housing 1/2" NPT
  • 10" Water Filter Cartridge
  • Mounting bracket and hardware

    10" Water Filter Cartridge ( Everpure model CG5-10S )
  • Five micron carbon block reduces dirt and fine particles from water.
  • Effectively reduces unwanted tastes, odor and chlorine.
  • High porosity design prevents the cartridge from plugging before its adsorption capacity is exhausted.
  • Helps keep equipment running at peak efficiency and keeps maintenance costs down.
  • Capacity: 6,000 gallons
  • Change cartridges on a regular 6 month preventative maintenance program

Manufacturer Information


Power Information

115 volts


155 lbs.
26 in.
26.5 in.
38.5 in.

Shipping Information

Your order will be shipped from
Atlanta, GA 30340

Customer Pick Up

(Not Available for pickup)

NSF Listed
NSF Approved
This product meets National Sanitation Foundation (NSF) standards for public safety & environmental factors with regards to design, manufacture, operation, and labeling.
UL Listed
UL Listed
This product is UL listed by the UL certification agency which means it meets safety and structural integrity standards for use in food service operations.
Energy Star Certified
Energy Start Certified
This product has been certified by a joint agency program supported by Environmental Protection Agency (EPA) and the U.S. Department of Energy (DOE) for energy efficiency.

Included Options

This item is available in multiple configurations. Get the most from your investment by taking the time to select the right configuration for your needs.

Manitowoc Dice Ice Cube Options
Full Dice cube (In Stock)
Half-Dice cube (In Stock)
